Product Introduction

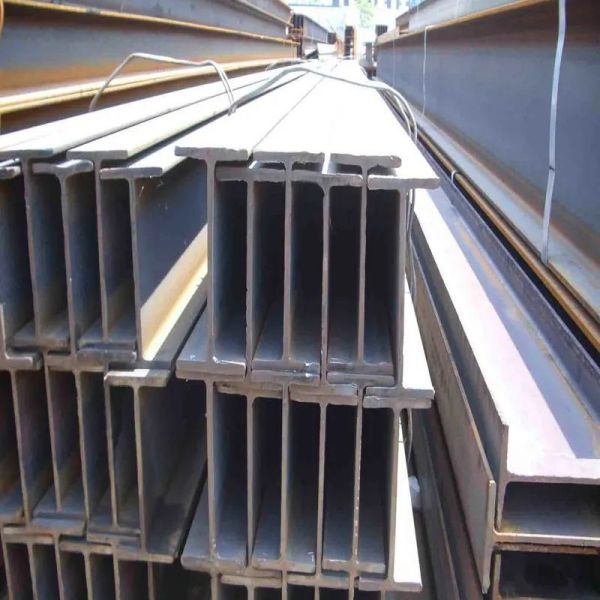

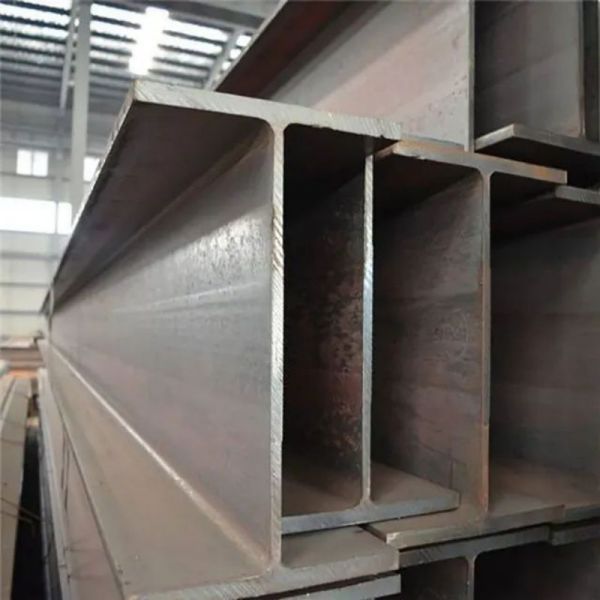

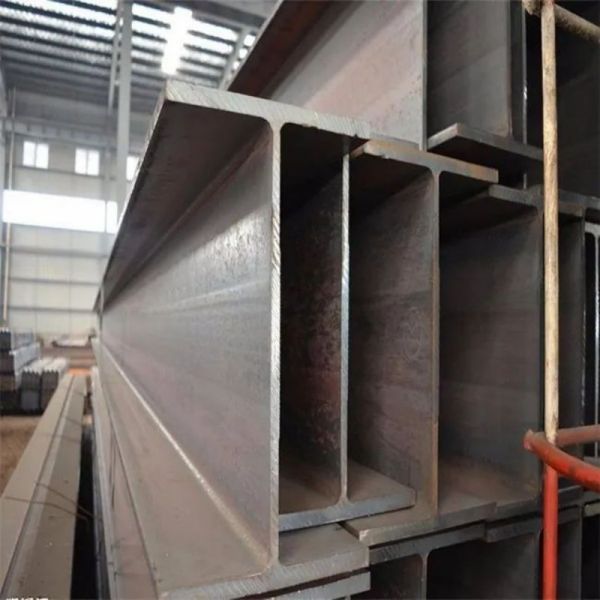

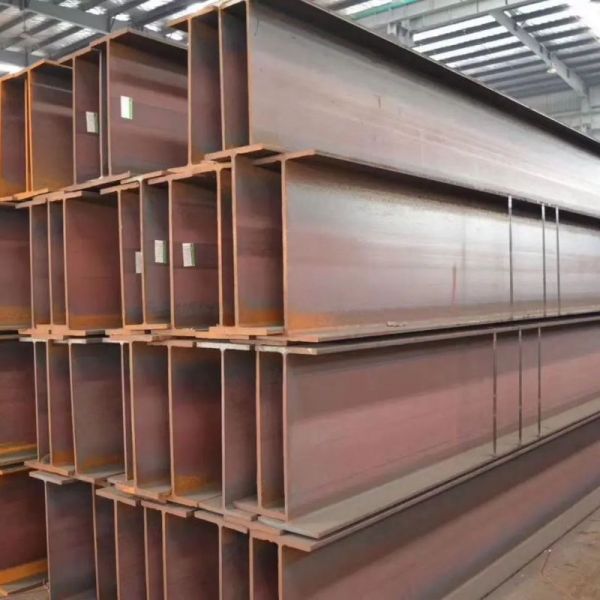

Shuangjiu Steel can provide H-beams with multiple standards such as ASTM, ASME, EN, BS, GB, DIN, JIS, etc. To meet the requirements of customers in various regions. (If you need it, please click here to contact us.) H-shaped steel has the characteristics of high strength, good rigidity, and light weight, and is widely used in beams, columns, suspension systems, support structures, and other parts of building structures. H-shaped steel has the advantages of high strength, good rigidity, light weight, and good seismic performance. It is a commonly used structural material in industries such as architecture, bridges, and mechanical manufacturing, and plays an important role in improving the safety, stability, and economic benefits of buildings.
Specification
Standard | ASTM, ASME, EN, BS, GB, DIN, JIS, etc |
Surface Treatment | Two lays of Anti-rust Painting,Hot Dip Galvanized,Black |
Material | G350 S275JR S355JR,SS400,ASTM36,S235jr,S235jo, Q235B and Q345B etc. |
Size | 1.Web Width (H): 100-900mm 2.Flange Width (B): 100-300mm 3. Web Thickness (t1): 5-30mm 4. Flange Thickness (t2): 5-30mm Or Customers' requirements |
Advantages | 1. Lower cost with better quality. 2. High safety performance. 3. Easy to assemble and dismantle. 4. Manufacture under complete quality control system - ISO9001. 5. Installation with instruction of experienced engineers 6. Non-pollution. |
Application | It is widely used in beam and column components of industrial and civil construction steel structure. Steel structure load-bearing support for industrial structures. Ship and machinery manufacturing frame structure. Steel piles and supporting structures of underground engineering, etc. |
Identification | Nominal weight 1m | Nominal dimensions | Cross-section | Dimensions for detailing | ||||||||
kg/m | mm | A | h1 | d | Ø | pmin | pmax | |||||
b | h | t1 | t2 | R1 | cm2 | mm | mm | mm | mm | |||
IPE 80 | 6,0 | 46 | 80 | 3,8 | 5,2 | 5,0 | 7,64 | 69,6 | 59,6 | - | - | - |
IPE 100 | 8,1 | 55 | 100 | 4,1 | 5,7 | 7,0 | 10,30 | 88,6 | 74,6 | - | - | - |
IPE 120 | 10,4 | 64 | 120 | 4,4 | 6,3 | 7,0 | 13,20 | 107,4 | 93,4 | - | - | - |
IPE 140 | 12,9 | 73 | 140 | 4,7 | 6,9 | 7,0 | 16,40 | 126,2 | 112,2 | - | - | - |
IPE 160 | 15,8 | 82 | 160 | 5,0 | 7,4 | 9,0 | 20,10 | 145,2 | 127,2 | - | - | - |
IPE 180 | 18,8 | 91 | 180 | 5,3 | 8,0 | 9,0 | 23,90 | 164,0 | 146,0 | M10 | 48 | 48 |
IPE 200 | 22,4 | 100 | 200 | 5,6 | 8,5 | 12,0 | 28,50 | 183,0 | 159,0 | M10 | 54 | 58 |
IPE 220 | 26,2 | 110 | 220 | 5,9 | 9,2 | 12,0 | 33,40 | 201,6 | 177,6 | M12 | 60 | 62 |
IPE 240 | 30,7 | 120 | 240 | 6,2 | 9,8 | 15,0 | 39,10 | 220,4 | 190,4 | M12 | 66 | 68 |
IPE 270 | 36,1 | 135 | 270 | 6,6 | 10,2 | 15,0 | 45,90 | 249,6 | 219,6 | M16 | 72 | 72 |
IPE 300 | 42,2 | 150 | 300 | 7,1 | 10,7 | 15,0 | 53,80 | 278,6 | 248,6 | M16 | 72 | 86 |
IPE 330 | 49,1 | 160 | 330 | 7,5 | 11,5 | 18,0 | 62,60 | 307,0 | 271,0 | M16 | 78 | 96 |
IPE 360 | 57,1 | 170 | 360 | 8,0 | 12,7 | 18,0 | 72,70 | 334,6 | 298,6 | M22 | 88 | 88 |
IPE 400 | 66,3 | 180 | 400 | 8,6 | 13,5 | 21,0 | 84,50 | 373,0 | 331,0 | M22 | 96 | 98 |
IPE 450 | 77,6 | 190 | 450 | 9,4 | 14,6 | 21,0 | 98,82 | 420,8 | 378,8 | M24 | 100 | 102 |
IPE 500 | 90,7 | 200 | 500 | 10,2 | 16,0 | 21,0 | 115,50 | 468,0 | 426,0 | M24 | 102 | 112 |
IPE 550 | 106,0 | 210 | 550 | 11,1 | 17,2 | 24,0 | 134,40 | 515,6 | 467,6 | M24 | 110 | 122 |
IPE 600 | 122,0 | 220 | 600 | 12,0 | 19,0 | 24,0 | 156,00 | 562,0 | 514,0 | M27 |
If you have any questions or need further information about our hot-rolled carbon steel coils, feel free to contact us at any time. We are very happy to provide you with free samples for testing and evaluation.
Building Material EN Standard H Beam
Factory Directly Sell Steel H/I Beam
Manufacture H Beam With Low Price
Hot Rolled Steel H Beam Supplier
UB H Beam For Sale
Building Construction H Beam Steel Supplier
Q: Are you a manufacturer?
A: Yes, we are a manufacturer with our own factory. We have leading capabilities in producing and exporting galvanized steel coils, galvanized aluminum coils, PPGI, carbon steel products, and more. We promise that we are what you want.
Q: Can we visit your factory?
A: Warmly welcome, once we have your schedule, we will come to pick you up.

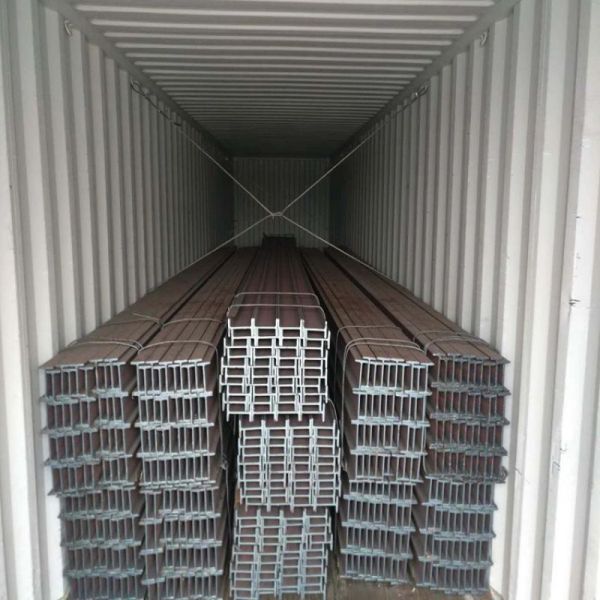

Q: Can you arrange shipment?
A: Of course, we have fixed freight forwarders who can obtain the most favorable prices from most shipping companies and provide professional services.
Q: What is your delivery time?
A: If we have stock of the size you need, it usually takes 3-5 days. If customized production is required, it will take approximately 7-10 days.Depending on the quantity.
Q: How can we obtain a quotation?
A: Please provide the product specifications, such as material, size, shape, etc. So we can provide the best quotation. (Click Here To Contact Us)
Q: How can you maintain a good long-term relationship with our business?
A: 1. We maintain good quality and competitive prices to ensure the interests of our customers.
2. We respect every customer as our friend and sincerely do business and make friends with them, no matter where they come from.
Q:Can we get the some samples?Any charges?
A: Yes , we could offer the sample for free charge but do not pay the cost of freight . If you place the order after confirm the
sample , we will refund your express freight or deducte it from the order amount .
Q: What is your terms of payment ?
A: The payment methods we usually use are TT, LC, etc.
